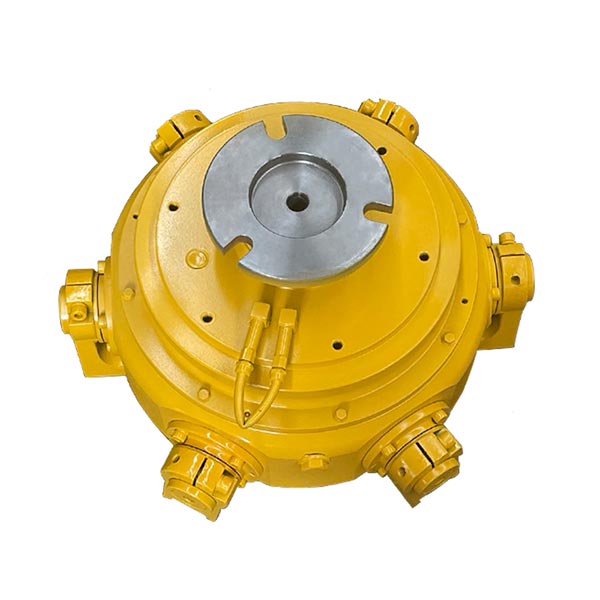

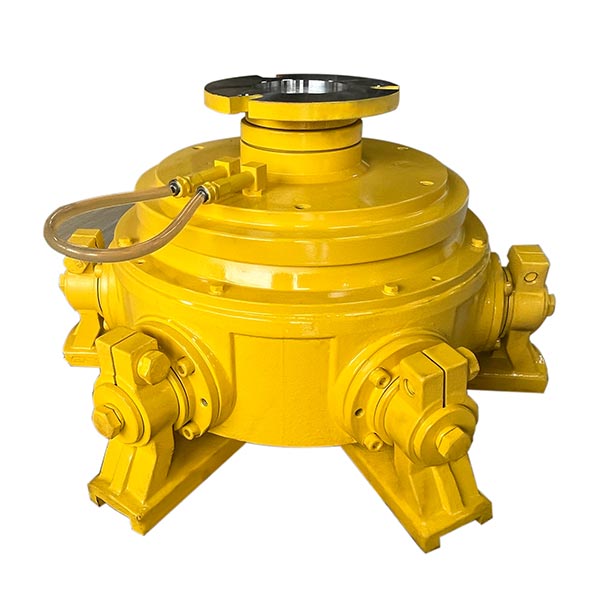

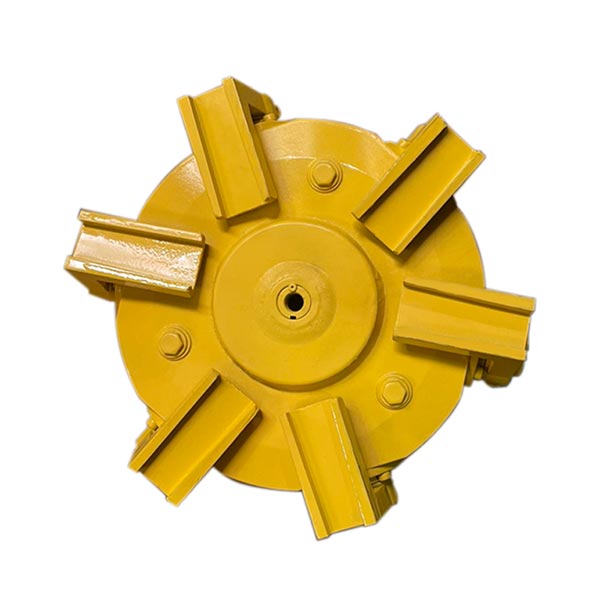

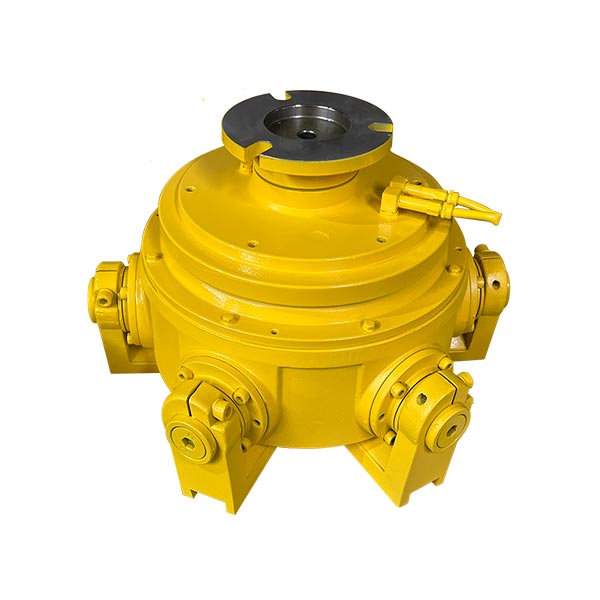

HY290抛光磨头
HY290系统抛光磨头，结构稳定，易于维护，故障率低。广泛应用于陶瓷抛光砖生产线和石材生产线
产品详情Product Description
Please swipe left and right to view the following product specification parameters.
| Model | Polishing grinding block | Body material | MAX. rotary diameter | MIN. head rotation speed | MAX. head rotation speed | Overall height | Section holder length | Diameter of main shaft | DIA. For mounting spigot of main shaft | Connecting hold for main shaft | Center distance | Net weight | Matching power | Swing frequency of grinding block feet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY290 | 6 PCS | CAST ALUMINUM ALLOY / CAST IRON | Ø520mm/490mm/480mm | 500-550RPM/MIN. | 500-550RPM/MIN. | 286MM | 165MM | Ø170MM | Ø85MM | 3 x ø18 | 6-M10-ø240 | 90KG | 11KW | 80/min |
* [Note] The above data are standard parameters and will not be notified if they are changed in the future.
* To the extent permitted by law, Foshan Dingyue Machinery Co., Ltd. reserves the right of final interpretation of all data.
