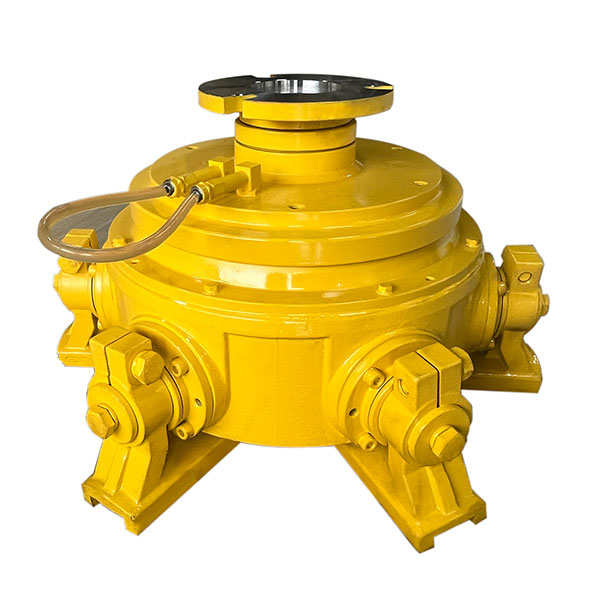

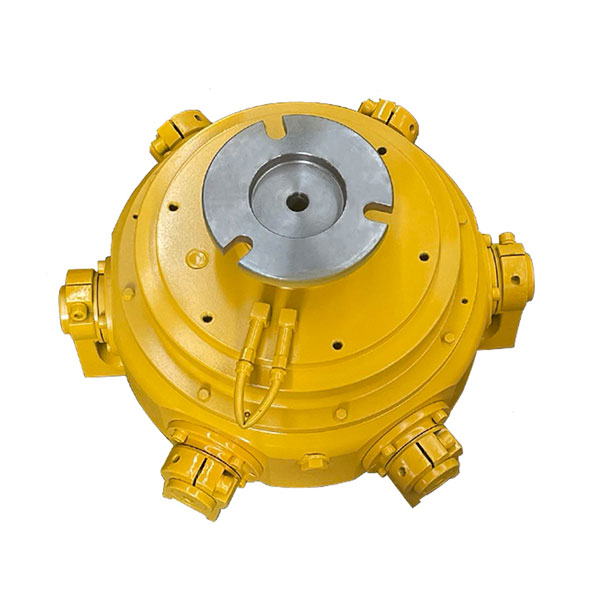

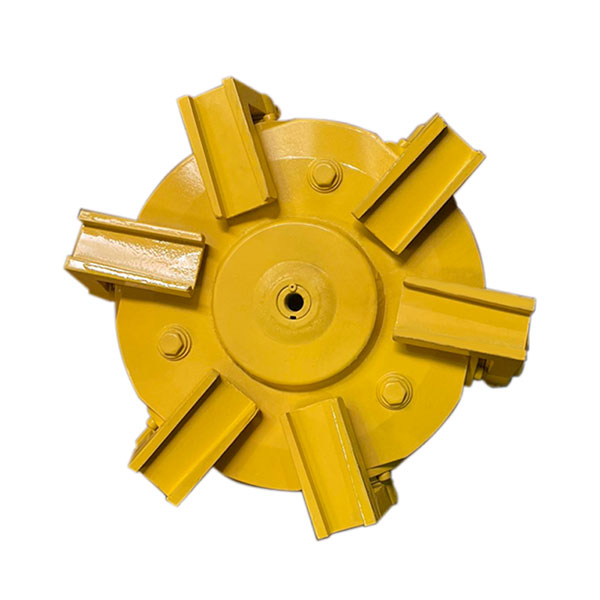

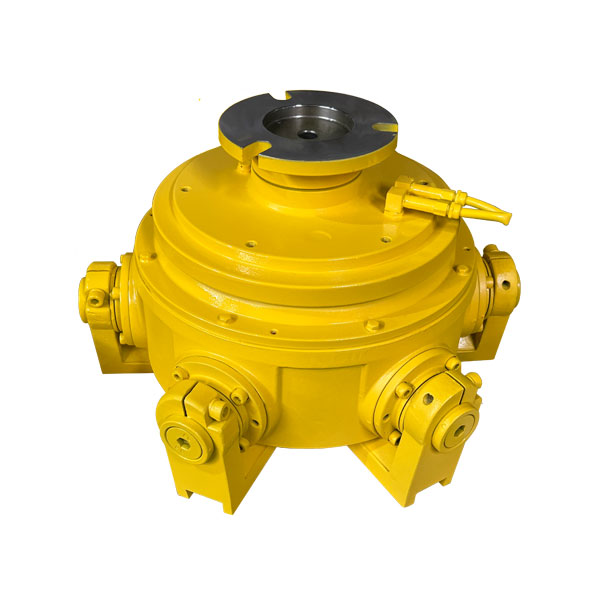

HY270齿轮系统抛光磨头
HY270齿轮系统抛光磨头采用结构稳定、维修方便、故障率低的多角齿轮传动系统，广泛应用于瓷砖抛光生产线和石材抛光精抛生产线上。
产品详情Product Description
Please swipe left and right to view the following product specification parameters.

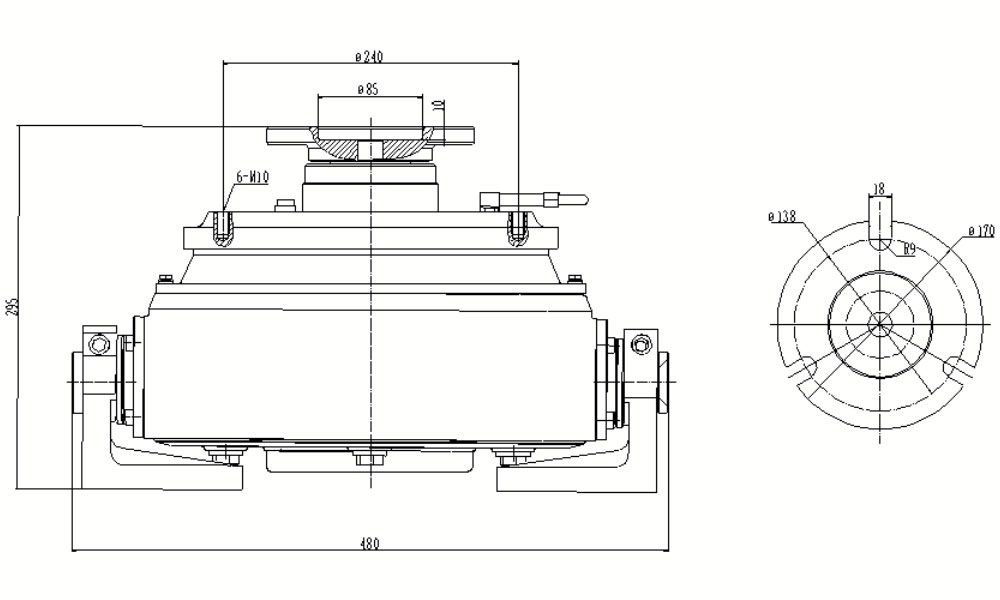

| Model | Polishing grinding block | Body material | MAX. rotary diameter | MIN. head rotation speed | MAX. head rotation speed | Overall height | Diameter of main shaft | DIA. For mounting spigot of main shaft | Connecting hold for main shaft | Center distance | Net weight | Matching power | Swing frequency of grinding block feet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY270 | 6 PCS | CAST IRON | Ø520mm/480mm | 400 RPM/MIN. | 550 RPM/MIN. | 292MM | Ø170MM | Ø85MM | 3 x Ø18 | 6-M10-Ø240 | 100KG | 11KW | 60/min |
* [Note] The above data are standard parameters and will not be notified if they are changed in the future.
* To the extent permitted by law, Foshan Dingyue Machinery Co., Ltd. reserves the right of final interpretation of all data.
